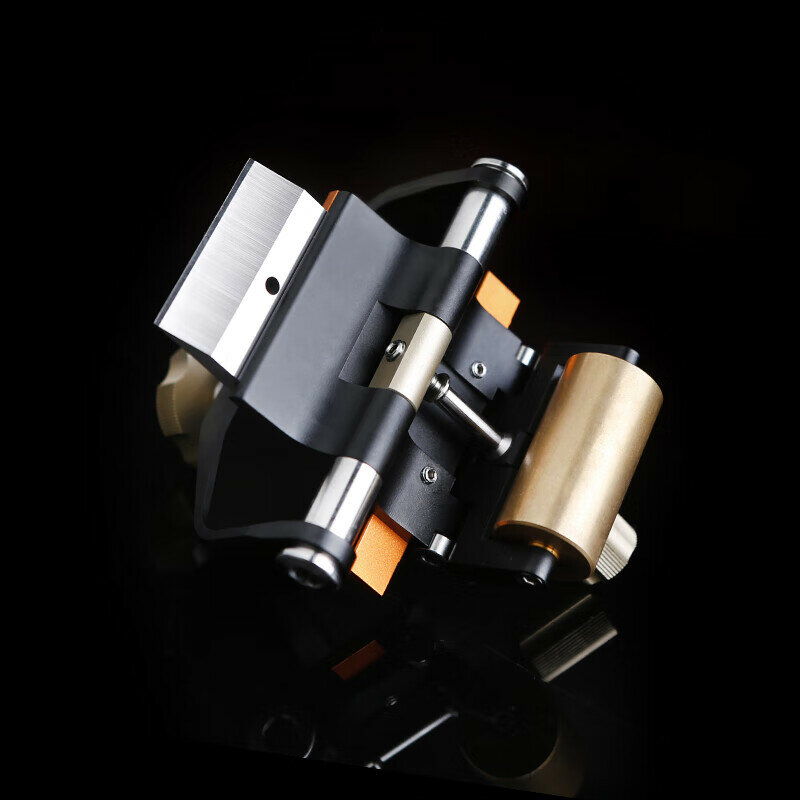

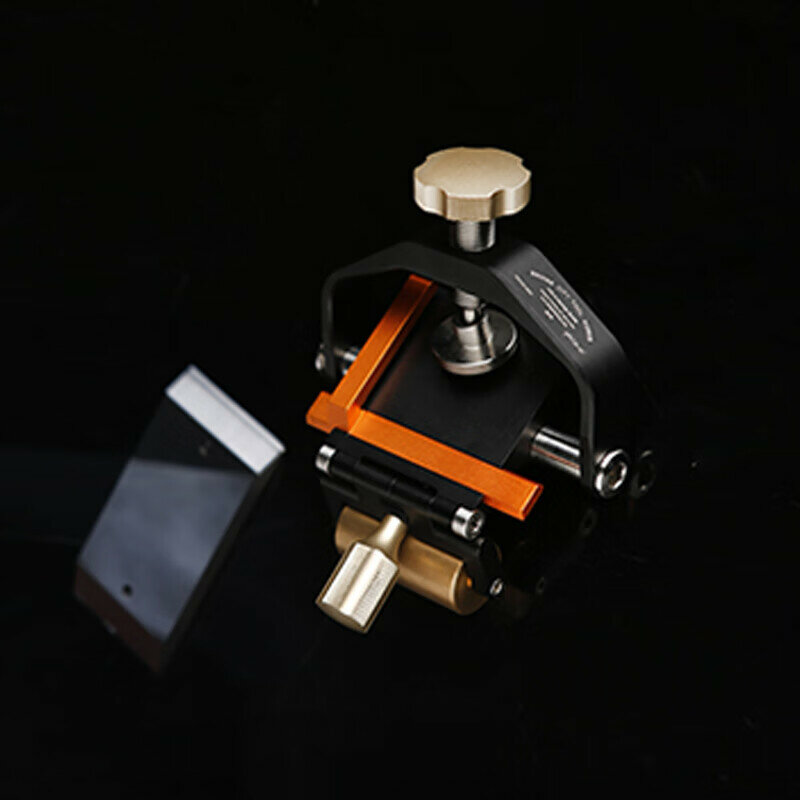

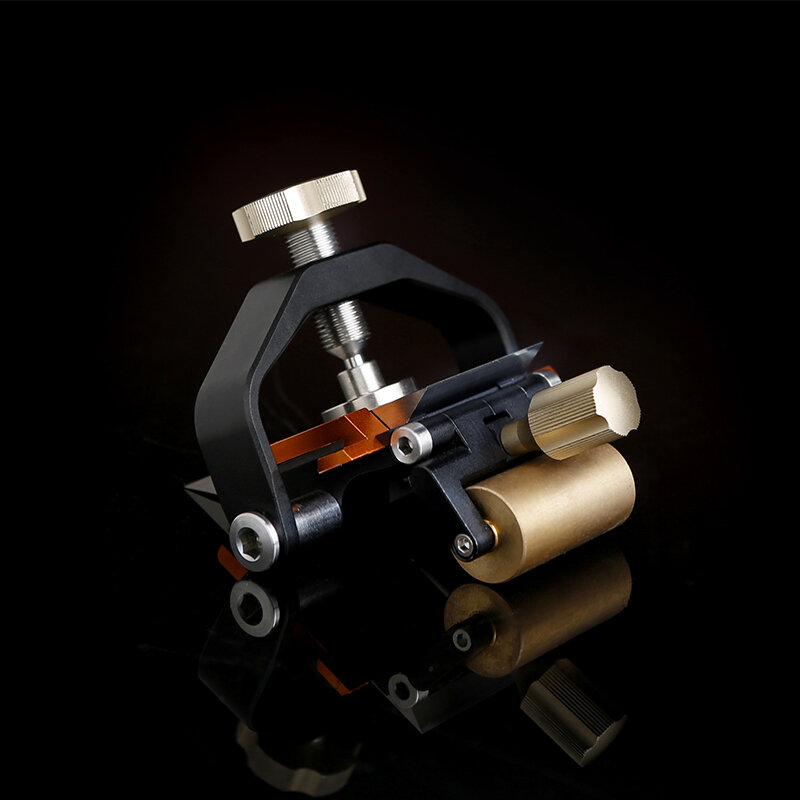

Precise Angle Control: The HG-4 Knife Sharpener comes with a fixed angle rule that allows you to quickly and accurately obtain the following sharpening angles: 20°, 25°, 30° and 35°.

Convenient Adjustments: With a unique crane span structure and precision screw design, the sharpener effortlessly adapts to various tapered tools. Quick micro-adjustments for blade angle or bevel can suit different grinding needs.

Versatile Application: The wide working surface of the HG-4 Knife Sharpener can accommodate most of the planing blades and chisels, making it a multi-tool wonder in your toolkit.

Easy to Use: Users simply need to align the planer or chisel with the built-in sliding "T-type backstop", extend the blade and tighten the clamp knob to precisely set the grinding angle using the unique fixed angle rule and the micro-adjustment knob.

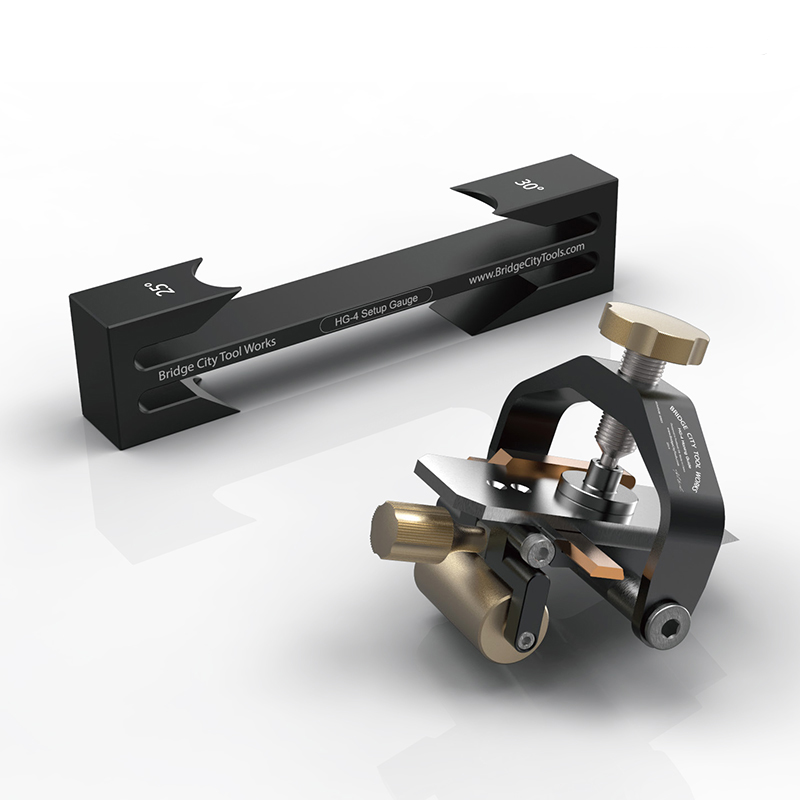

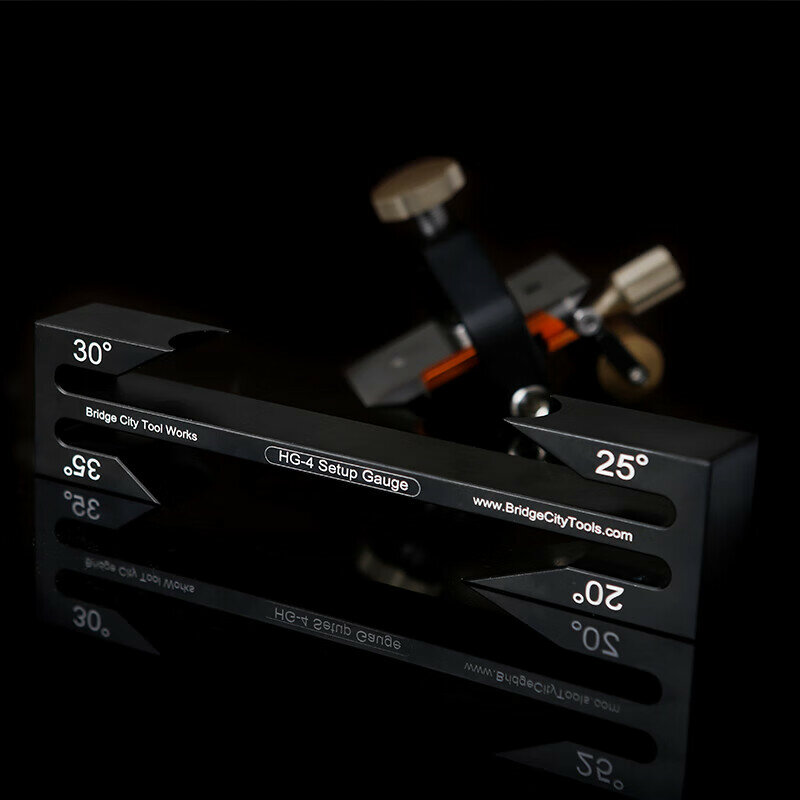

Innovative Design: The open design of the fixed angle gauge effectively avoids any interference with the clamp plate of the sharpener, ensuring smooth operation throughout your sharpening process.



Model: HG-4

Fixed Angle Gauge Size: 172× 38×24 mm

Fixed Angle Gauge Reference Angles: 20°, 25°, 30°, 35°

Maximum Blade Width: 63 mm

Maximum Blade Thickness: 12.5 mm

Sharpener Size: 114.5× 82.6 × 41.5 mm

Net Weight: 369 g

Gross Weight: 1.2 kg

Package Size (inner box): 275× 210×90mm

Package Size (outer box): 304× 223× 102 mm



1 x HG-4 Knife Sharpener
