3pcs DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter 4 Bit 5 Wires Voltage Current Meter with LED Dual Display COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

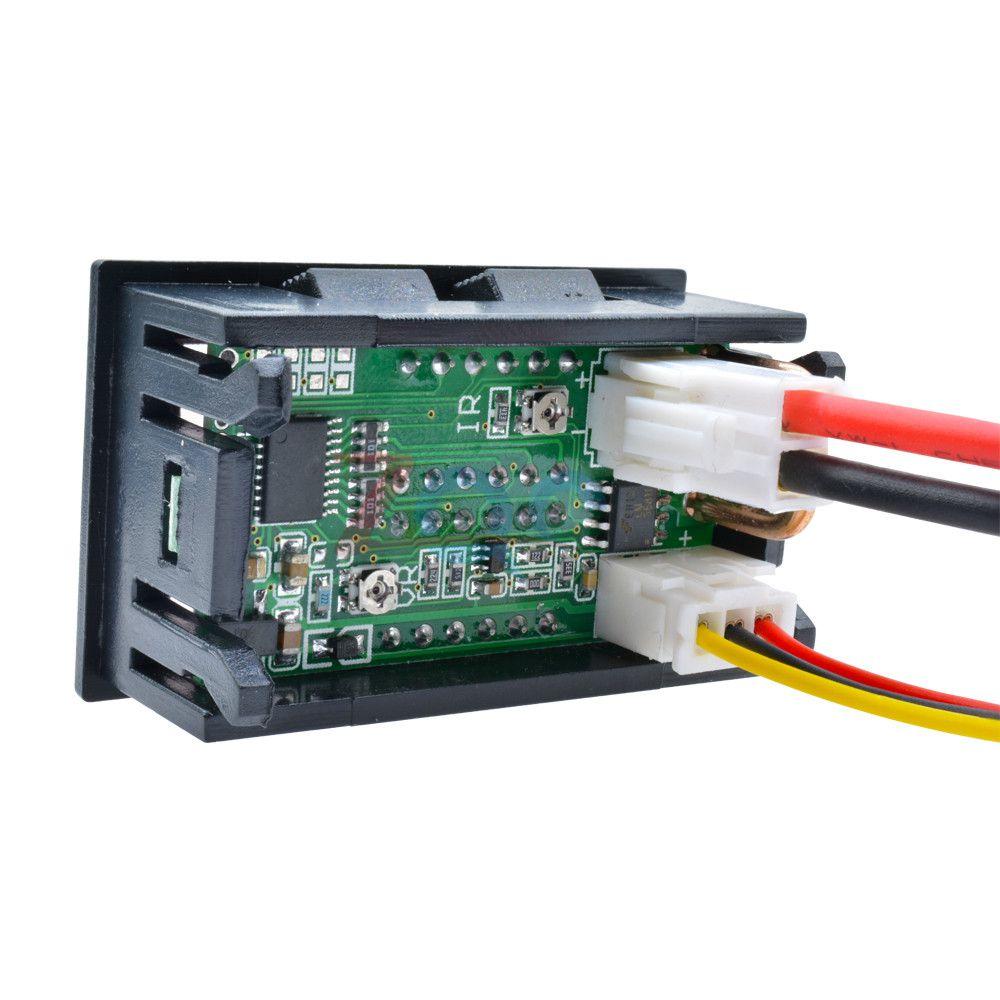

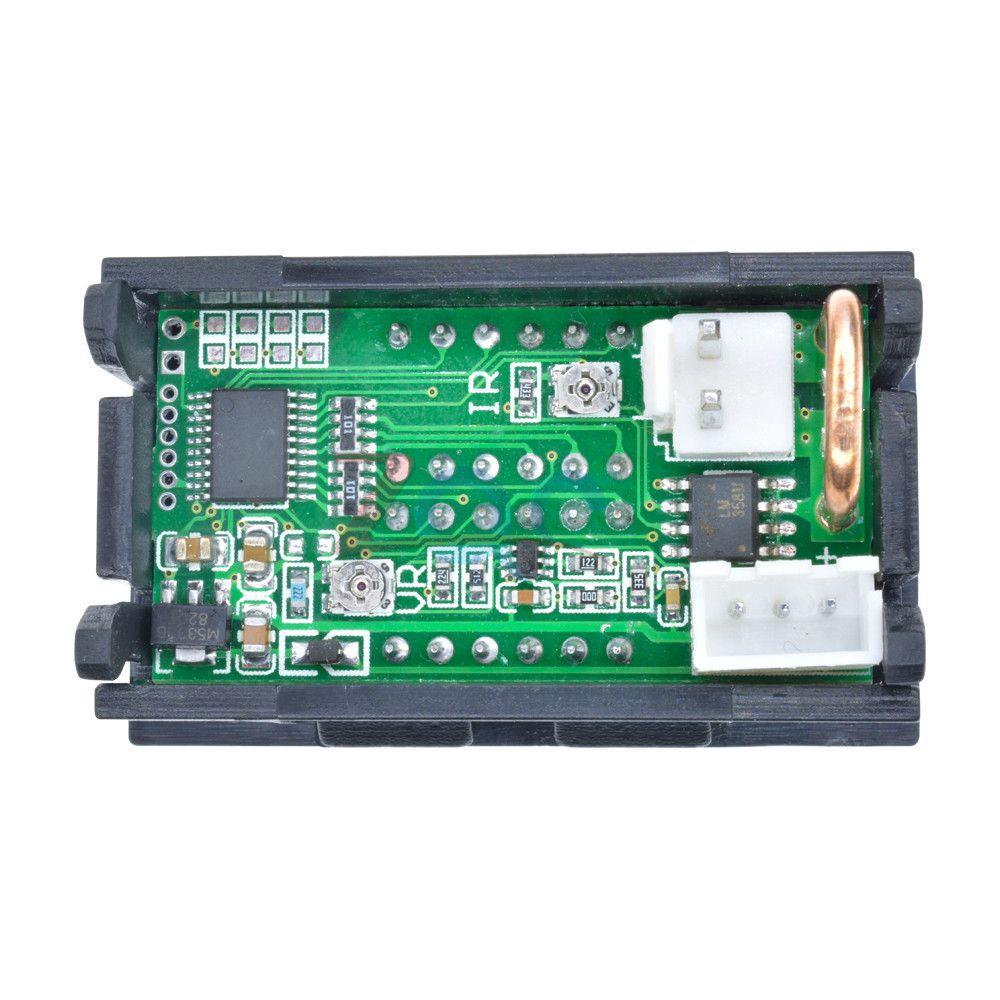

High precision: 4-digit Working voltage: DC 4V-28V Working current: <20mA Display: 0.28" Red + Blue Dual LED Display Voltage Measuring Range: DC 0.000V-100.0V Current Measuring Range: 0-9.999A Refresh rate: about 1S / 3times Operating temperature: -10°C - 65°C Working pressure: 80 to 106 kPa Size : 48x29x20 mm Mounting hole: 46 x 27 mm Current: Range x 0.08%+Two decimal point Voltage: Range x 0.08%+Two decimal point Red line thin: power supply + Red line (thick): IN+, current input Yellow line (thick): PW+, measuring terminal voltage input positiv Black line thick: COM, common measuring Please follow the wiring diagram, special attention, the load can only be connected to the positive, not negative! Otherwise burn the table! 3 x DC 100V 10A 0.28 Inch Mini Digital Voltmeter Ammeter
